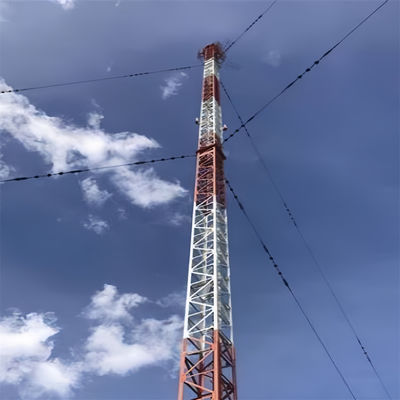

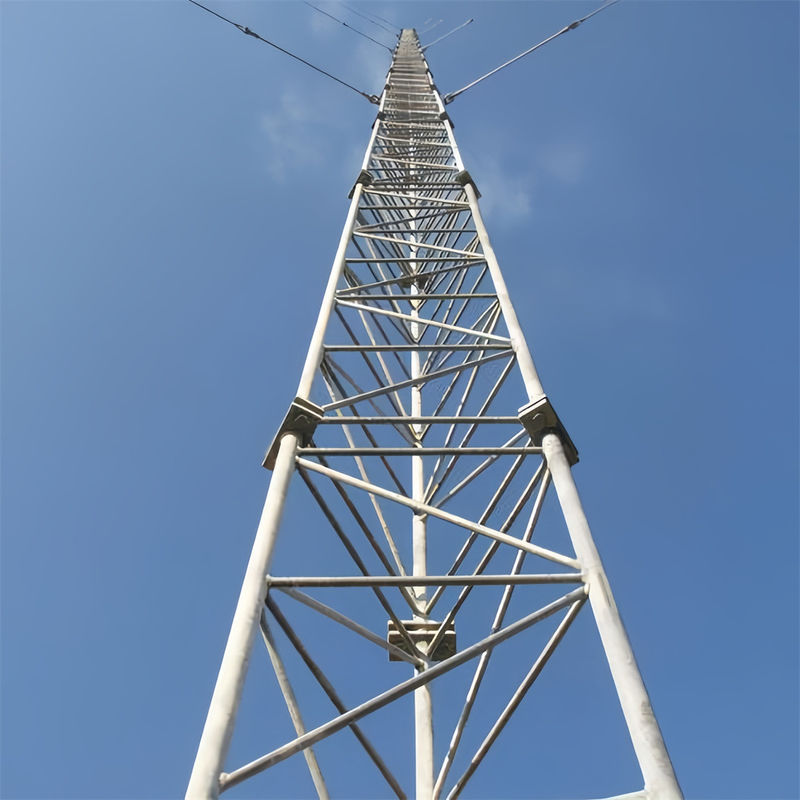

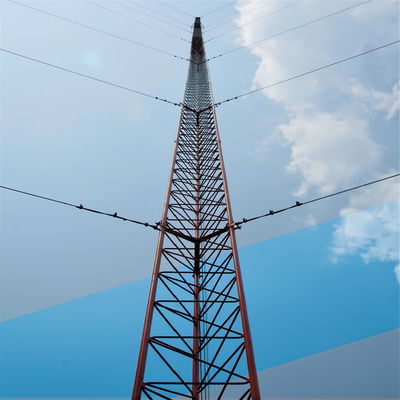

Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Large Image : Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	GB / ANSI / TIA-222-G
Model Number:	Guyed Wire Tower

Payment & Shipping Terms:

Minimum Order Quantity:	4 Tons
Price:	US$1600,1-100Tons;US$1000,>=100 Tons
Packaging Details:	Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time:	15-25 Days
Payment Terms:	L/C, T/T
Supply Ability:	500-1000 tons per month

Contact Now

Tubular Steel Telecommunication Guyed Wire Tower For 5G 4G 3G Mast Galvanized

Description

Certification:	ISO9001:2008 COC	Standard:	ANSI/TIA-222-G-2005
Material:	Q345/Q235/Seamless Pipe/Steel Bar ASTM A36 A572 Gr50	Nuts & Bolts:	GrGrade 8.8/6.8/4.8
Name:	Telecommunications Guyed Towers	Height:	5-200M
Wind Speed:	35M/S	Galvanized:	Hot Dipped Galvanized
Earthquake Intensity:	8°	Lifetime:	30 Years
Color:	Customer
Highlight:	5g guyed wire tower , 5g galvanized steel tower , 4g guyed wire tower

JIAYAO CO., LTD.

1.Specifications

Design
1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

What is the tower boday of guyed wire tower?

How to mount antenna on the guyed wire tower?

What is the Anti Climbing Device on the guyed wire tower?

How to connect guyed wire and guyed wire tower?

How to connect guyed wire and guyed anchor bolt?

Please Click Here For More Information!!!!!!

2.Packaging & Shipping

3.Cooperation Customers

4.Certifications

5.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.

1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.

2. Manufacturer or trade company?
Weare manufacturer and have own factory, and welcome to visit our factory.

3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.

4. How long does the service life for steel tower?
We can assured 20-30 years’service life.

5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.

If you need it, we will welcome you 24 hours a day!
