Product Details:
|
| Standard: | ANSI/TIA-222-G-2005 | Material: | Angle Steel Q235B Q345B Q420 |
|---|---|---|---|

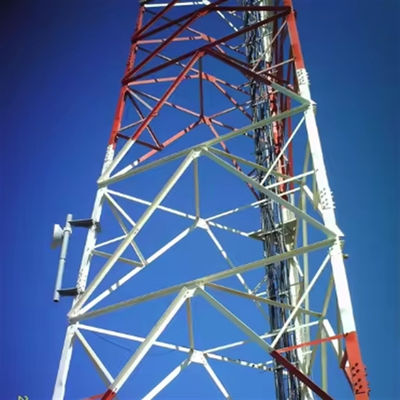

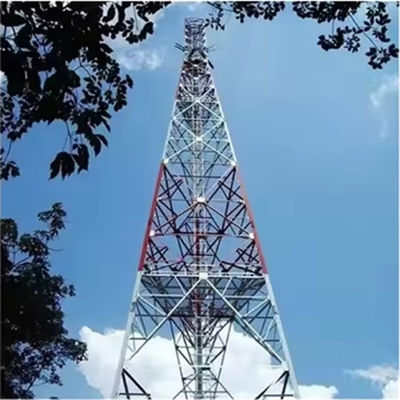

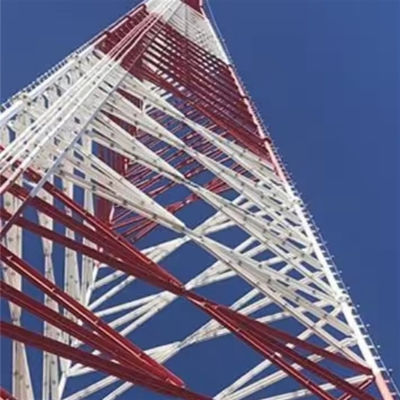

| Certification: | ISO9001:2008 SGS COC | Product Name: | Self Supporting 3 Legs Internet 5G Cell Signal Telecom Radio Telecommunication Antenna Tower |
| Height: | 5-200M | Wind Speed: | 0-180 Km/h |
| Structure: | Three Support Legs | Lifetime: | More Than 20 Years |
| Platform Load: | Up To 3 Platforms | Application: | Telecommunication, Broadcasting, And Power Transmission |
| Highlight: | antenna 3 legged tower,antenna 3 legged angular steel tower,4g 3 legged tower |
||
| Design | ||
| 1. Design Code | TIA/EIA-222-G/F | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 235 | 355 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Galvanizing | ||
| 14. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 15. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
What is 3 legged angular steel tower body?
What is 3 legged angular steel tower foot?
What is ladder and cable tray of 3 legged angular steel tower?
How to install 3 legged angular steel tower?
Galvanizing angular steel tower testing.
Please Click Here For More Information!!!!!!
Please Click Here For More Information!!!!!!
Customized product types & advantage
Monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt or overlap(slip connection). It has the characteristics of easy installation and can adapt to a variety of complicated field site.
