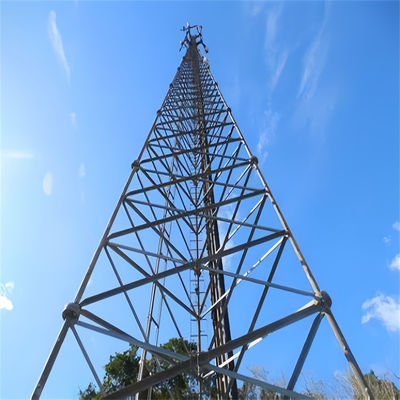

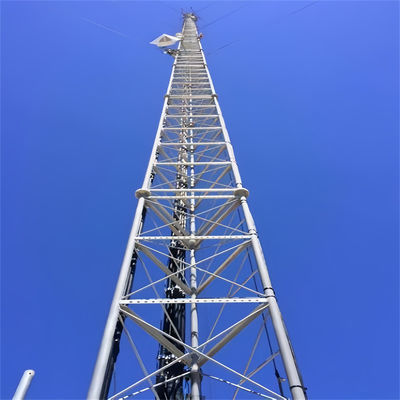

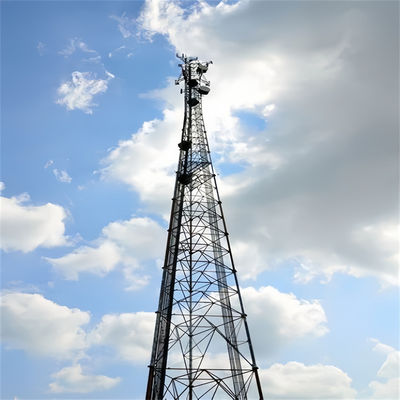

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower
Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower
Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower

Large Image :  Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower

Product Details:
Place of Origin: China
Brand Name: Jiayao
Certification: GB / ANSI / TIA-222-G
Model Number: 3 Legged Tubular Steel Tower
Payment & Shipping Terms:
Minimum Order Quantity: 4 Tons
Price: US$1600,1-100Tons;US$1000,>=100 Tons
Packaging Details: Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time: 15 Days
Payment Terms: L/C, T/T
Supply Ability: 500 tons per month
Contact Now

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower

Description
Standard: ANSI/TIA-222-G-2005 Galvanization Standard: ASTM A123/ ISO 1461
CERTIFICATE: ISO9001:2008 COC Material: Steel
Height: 5-100M,or Customized Wind Speed: 0-150KM/H
Lifetime: More Than 20 Years Galvanized: Hot Dipped Galvanized
Tower Type: Tubular
Highlight:

galvanized three legged tower

,

galvanized antenna telecommunication tower

,

tubular three legged tower

JIAYAO CO., LTD

Product Description

Technical Data

Design
1. Design Code TIA/EIA-222-G/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test

What is the lattcie structure of 3 legged tubular steel tower?

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 0

How to mount the MW dish on the 3 legged tubular steel tower?



Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 1

Main structure of 3 legged tubular steel tower?

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 2

First, the structural strength is good

1. The design structure of the steel pipe tower is simple, which can effectively distribute the load of antennas, arresters, cables and other equipment, thereby improving the load-bearing capacity of the whole tower.

2. The cost of the steel pipe tower is relatively low, and it can withstand natural disasters such as strong storms and rains, and has good impact resistance and durability.

Second, easy to install

1. The structure of the steel pipe tower is exquisite, and it can be installed in a short time, which greatly saves the installation cost and time cost.

2. The steel tube tower is relatively easy to assemble and disassemble, especially suitable for applications that require frequent changes to antennas, equipment and cables.

Third,Convenient maintenance

1. The surface of the steel pipe tower is smooth and easy to clean, which can reduce the difficulty

and cost of maintenance work.

2. The steel pipe tower has a long service life and requires less maintenance and maintenance,

which saves a lot of manpower and material resources for some remote areas and harsh telecom base stations.

Please click here for more information!!!

Customer in factory

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 3

Assembling

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 4

Galvanizing Steel Tower Testing

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 5

Packaging & Shipping

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 6



Gular customers

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 7

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 8



Please click here for more information!!!

Certifications

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 9

Our Services

Hot Dip Galvanized Self Supporting Three Legged Tower Tubular Gsm Antenna Telecommunication Tower 10

​



Please click here for more information!!!
