Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication
Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication
Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication

Large Image :  Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication

Product Details:
Place of Origin: China
Brand Name: Jiayao
Certification: GB / ANSI / TIA-222-G
Model Number: Monopole Tower
Payment & Shipping Terms:
Minimum Order Quantity: 4 Tons
Price: US$1600,1-100Tons;US$1000,>=100 Tons
Packaging Details: Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time: 15 Days
Payment Terms: L/C, T/T
Supply Ability: 500 tons per month
Contact Now

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication

Description
Standard: GB / ANSI / TIA-222-G Material: Q345B/A572
Certification: ISO9001:2008 COC Galvanization Standard: ASTM A123/ ISO 1461
Welding: AWS D 1.1 Product Name: 20 30 45 50 60 M Meter Cell Antenna Telecom Tower Steel Pole Telecommunication Hot Dip Galvanized Monopole Tower
Height: 5-80M Wind Speed: 0-300KM/H
Service Life: 20-50 Years Accessories: Ground Anchor
Highlight:

25m cell phone antenna tower

,

25m monopole cell phone tower

,

40m cell phone antenna tower

JIAYAO CO.,LTD

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data
Design
1. Design Code TIA/EIA-222-G/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2

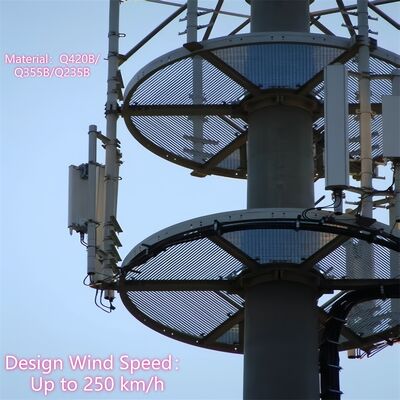

3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

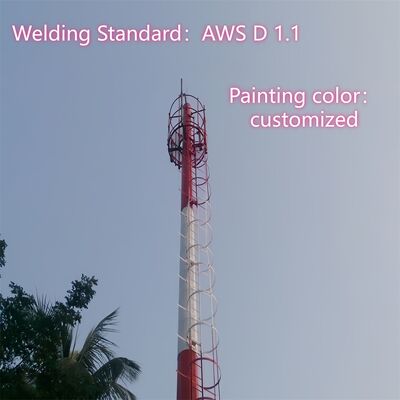

13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum

⇔What is the main body of monopole tower?

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 0

⇔What is the Bottom Flange, Ladder and Platform of monopole tower?

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 1

⇔What is the main body of monopole tower after Hot Dip Galvanized?

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 2

Please Click Here  For More Information!!!

Production Process

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 3

Gular customers



Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 4



Certifications

Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 5

Our Services



Iron Wifi Cell Phone Antenna Tower 25m 40m Height Network Mobile Gsm Communication 6
