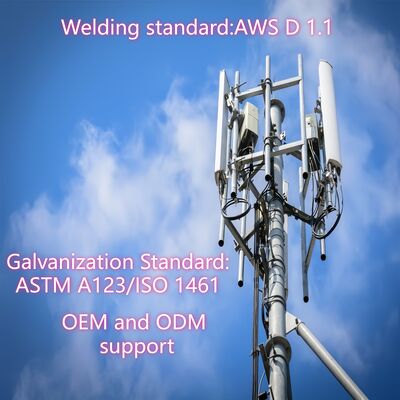

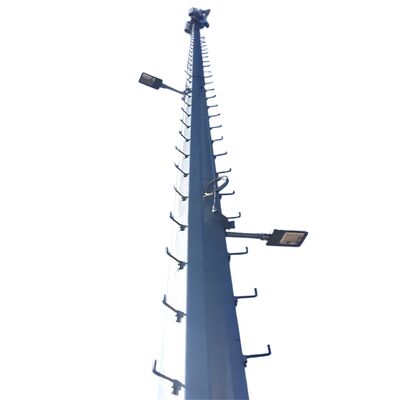

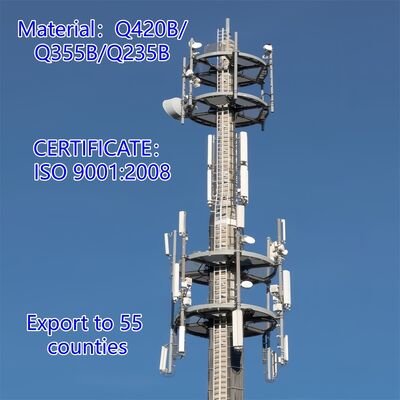

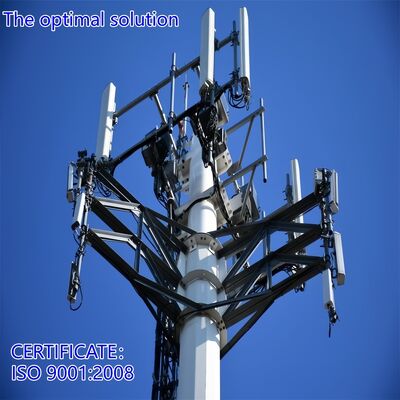

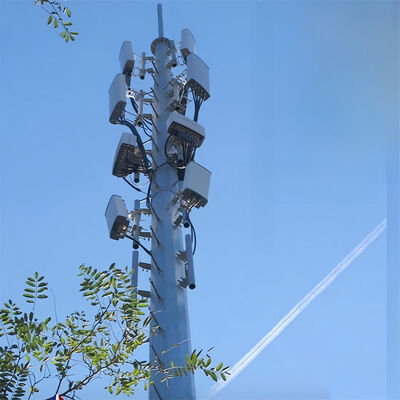

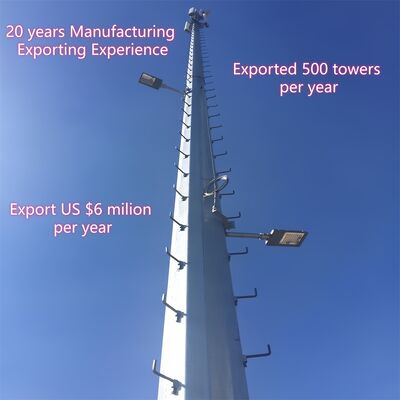

10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Large Image : 10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	ISO9001:2008 COC
Model Number:	Monopole Tower

Payment & Shipping Terms:

Minimum Order Quantity:	4 Tons
Price:	US$1600,1-100Tons;US$1000,>=100 Tons
Packaging Details:	Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time:	15 Days
Payment Terms:	L/C, T/T
Supply Ability:	500 tons per month

Contact Now Chat Now

10M 30M 45M 60MCompact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna

Description

Standard:	GB / ANSI / TIA-222-G	Material:	Q345B/A572
Certification:	ISO9001:2008 COC	Product Name:	Compact Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Antenna
Height:	5-85M	Wind Speed:	>=60m/s
Lifetime:	More Than 15 Years	Design Code:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure:	Monopole Tower	Color:	Customize
Highlight:	compact monopole tower 5G telecom , hot dip galvanized monopole tower , rooftop communication antenna monopole

JIAYAO CO.,LTD

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum
