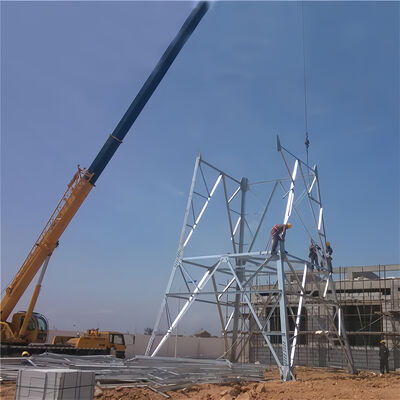

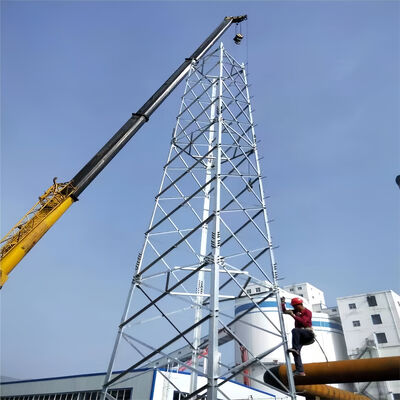

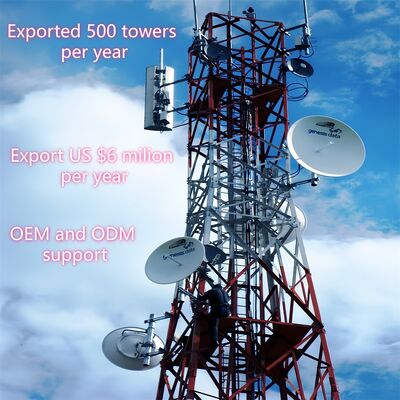

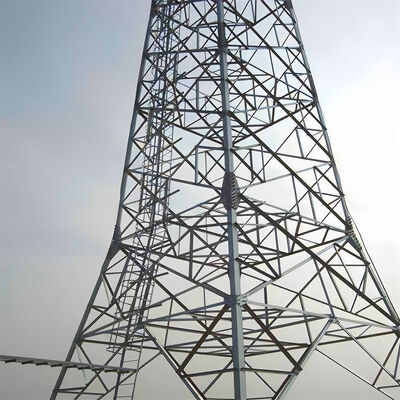

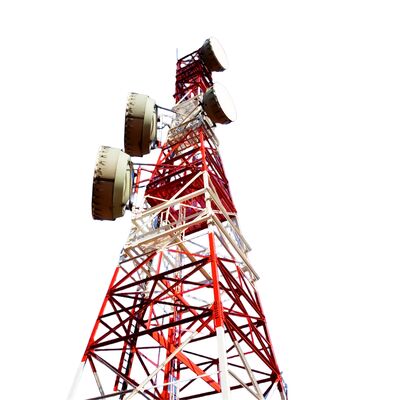

20 30 40M 4 Leg Angular Steel Lattice Durable 5G Wifi Cell Signal Booster Telecommunication Tower

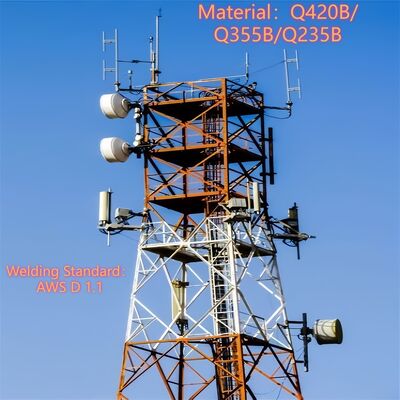

Large Image : 20 30 40M 4 Leg Angular Steel Lattice Durable 5G Wifi Cell Signal Booster Telecommunication Tower

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	ISO 9001:2008 COC
Model Number:	4 Legged Angular Steel Tower

Payment & Shipping Terms:

Minimum Order Quantity:	4 Tons
Price:	>=4 Tons,US$1600;>=100 Tons,US$1000
Packaging Details:	20GP Or 40HQ
Delivery Time:	15 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 tons per month

Contact Now Chat Now

20 30 40M 4 Leg Angular Steel Lattice Durable 5G Wifi Cell Signal Booster Telecommunication Tower

Description

Standard:	EN 1991-1-4 & EN 1993-3-1	Material:	ASTM A36 A572 Gr50
Warranty:	10-50 Years	Name:	4 Leg Angular Steel
Height:	5-200M	Structure:	Four Support Legs
Design Load:	Customizable	Origin:	China
Installation:	Bolted	Platform Type:	Round Or Square
Lifetime:	More Than 20 Years	Nuts & Bolts:	Grade 8.8/6.8/4.8
Installation Time:	Shorter Than Traditional Lattice Towers
Highlight:	4 leg angular steel tower , 5G wifi signal booster tower , durable telecommunication steel tower

JIAYAO CO.,LTD.

Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Pacrum.lon bag or steel

Design

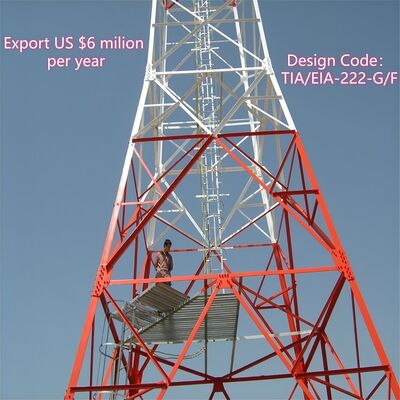

1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	235	355
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

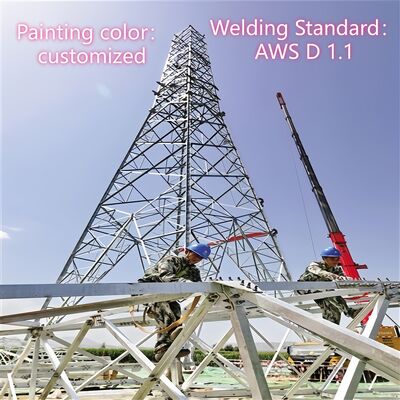

13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test
