High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Name: High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole
Brand: Jiayao Co., Ltd.
SKU: Power Transmisslon Tower
Price: 52.00 USD
Availability: InStock

All Products

3 Legged Angular Steel Tower
(48)

4 Legged Angular Steel Tower
(61)

3 Legged Tubular Steel Tower
(45)

Monopole Tower
(53)

Guyed Wire Tower
(26)

Guard Tower
(15)

Bionic Tree Tower
(25)

Power Transmission Tower
(18)

I'm Online Chat Now

High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Large Image : High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	ISO9001:2008 SGS COC
Model Number:	Power Transmisslon Tower

Payment & Shipping Terms:

Minimum Order Quantity:	4 Tons
Price:	>=4 Tons,US$1600;>=100 Tons,US$1000
Packaging Details:	Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time:	15-25Days
Payment Terms:	L/C, T/T
Supply Ability:	500 -1000tons per month

Contact Now Chat Now

High Voltage 220KV 500KV Galvanized Angle Steel Power Transmission Tower Suspension Utility Pole

Description

Material:	Steel Angle Q235B Q355B Q420B	CERTIFICATE:	ISO 9001:2008
Height:	5-100M,be Customizabled	Lifetime:	More Than 30 Years
Application:	Telecommunication,power Transmission	Rated Voltage:	10KV 66KV 132KV 220KV 380KV 400KV 750KV 1000KV
Design Code:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1	Hod Surface Treatment:	Hot Dip Galvanizing
Installation:	Bolted Connection	Color:	Customized
Highlight:	220KV galvanized power transmission tower , 500KV suspension utility pole , angle steel transmission tower

JIAYAO CO., LTD

1.Product Description

Height	From 10M-120M or according to client’s requirement
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal,Conical

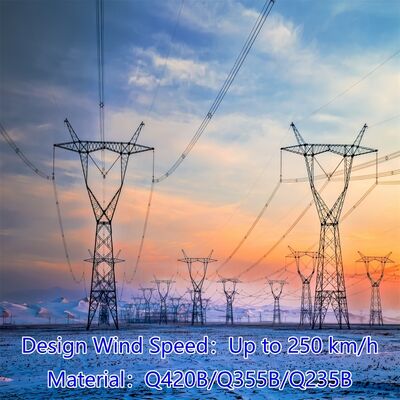

Material	Normally Q235B Q355B/A36,Yeild Strength≥235MPa
	Q345B/A572,Yeild Strength≥345MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	10kV to 600kV
Tolerance of the dimension	According to client’s requirement

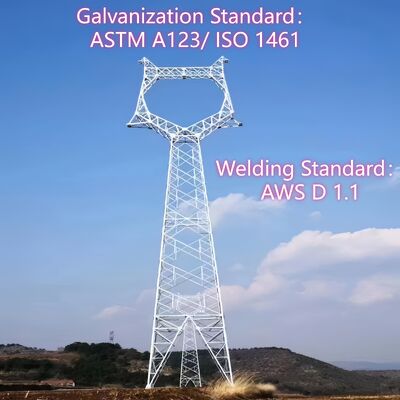

Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Length of per section	Within 14M once forming
Welding Standard	AWS D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client’s requirement
Life Period	More than 25 years, it is according to installing environment

Installation, construction, testing

Style display

Accept customer customization requirements

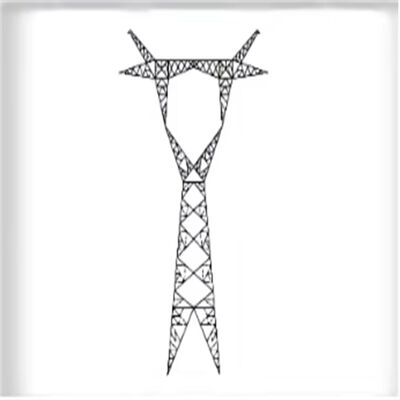

Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.

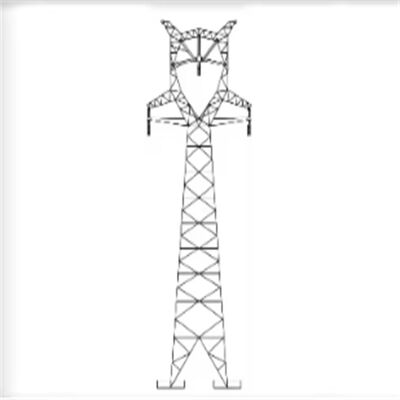

Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.

'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.

Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.
