Mobile Emergency Communication Tower Trailer with Telescopic Mast Hot Dip Galvanized Lattice Steel Tower for Rapid Deployment Disaster Recovery

Name: Mobile Emergency Communication Tower Trailer with Telescopic Mast Hot Dip Galvanized Lattice Steel Tower for Rapid Deployment Disaster Recovery
Brand: Jiayao Co., Ltd.
SKU: Telescopic Tower
Price: 3.00 USD
Availability: InStock

All Products

3 Legged Angular Steel Tower
(105)

4 Legged Angular Steel Tower
(124)

3 Legged Tubular Steel Tower
(121)

Monopole Tower
(134)

Guyed Wire Tower
(99)

Guard Tower
(17)

Bionic Tree Tower
(94)

Power Transmission Tower
(18)

Telescopic Tower
(19)

I'm Online Chat Now

Mobile Emergency Communication Tower Trailer with Telescopic Mast Hot Dip Galvanized Lattice Steel Tower for Rapid Deployment Disaster Recovery

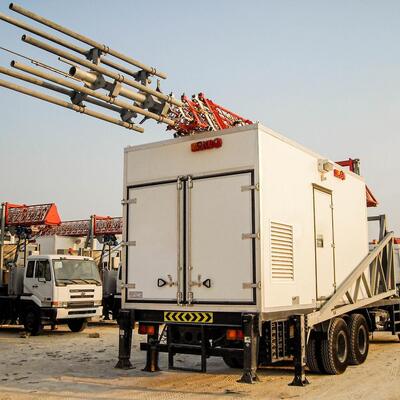

Large Image : Mobile Emergency Communication Tower Trailer with Telescopic Mast Hot Dip Galvanized Lattice Steel Tower for Rapid Deployment Disaster Recovery

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	ISO 9001:2008
Model Number:	Telescopic Tower

Payment & Shipping Terms:

Minimum Order Quantity:	1 Tons
Price:	>=1 Tons,US$25000;>=5 Tons,US$24500
Packaging Details:	20GP Or 40HQ
Delivery Time:	15 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 tons per month

Contact Now Chat Now

Mobile Emergency Communication Tower Trailer with Telescopic Mast Hot Dip Galvanized Lattice Steel Tower for Rapid Deployment Disaster Recovery

Description

Productname:	Mobile Emergency Communication Tower Trailer With Telescopic Mast Hot Dip Galvanized Lattice Steel Tower For Rapid Deployment Disaster Recovery	Standard:	GB / ANSI / TIA-222-G, EN 1991-1-4 & EN 1993-3-1
Numberofsections:	6	Material:	Solid Rod;Steel Tube
Height:	Up To 30 Meters	Minimumheight:	2 Meters
Certification:	ISO9001:2008 COC	Galvanizing Standard:	ASTM A123/ ISO 1461
Welding Standard:	AWS D 1.1	Basetype:	Fixed Or Mobile Base Options
Wind Speed:	40m/s	Windresistance:	Up To 120 Km/h
Deploymenttime:	Less Than 5 Minutes	Nuts & Bolts:	GrGrade 8.8/6.8/4.8
Vertical Deviation:	<1/1000	Loadcapacity:	500 Kg
Operatingtemperaturerange:	-20°C To 60°C	Applications:	Telecommunications, Surveillance, Lighting
Powersupply:	Battery Or External Power Source	Maintenance:	Low Maintenance With Modular Parts
Sectiontype:	Telescoping	Portability:	Foldable For Transport
Sectionmaterial:	Aluminum Alloy	Customization:	Available Upon Request

Mobile Emergency Communication Tower Trailer with Telescopic Mast Hot Dip Galvanized Lattice Steel Tower for Rapid Deployment Disaster Recovery

Telescopic Lattice Antenna Communication Tower is a revolutionary vertical structure designed for effortless height adjustment. Its nested sections expand or retract smoothly, making it ideal for aerial work, stage setups, or industrial installations.

Why Choose Our Telescopic Communication Tower?
Lightweight & Durable: Crafted from aerospace-grade steel, it's strong yet easy to transport.
Instant Height Control: Adjust from 3m to 10m in seconds-no tools needed!
Unmatched Stability: Anti-slip base and reinforced joints ensure safety at any elevation.
Versatile Applications: Perfect for construction, events, or maintenance tasks.

Need a comparison chart ? Just ask!

Product Description

Product Details
Height	15-30M
Wind Speed	40M/S
Main Material	Steel Tube, Solid rod
Vertical Deviation	<1/1000
Preservative Treatment	Hot Dipped Galvanized and painting

What is the rising state of COW?

Rising State of COW (Telescopic Tower)‌.The rising state refers to the vertical extension phase, where the telescopic tower deploys its nested sections sequentially using hydraulic or electric actuators. Each section slides outward along precision-guided rails, maintaining structural alignment and load stability. This process is typically controlled via a centralized interface, allowing incremental height adjustment from 6 to 30 meters depending on design. The system incorporates load sensors and anti-tilt mechanisms to ensure safety during ascent. Common applications include mobile communication towers, temporary surveillance platforms, and high-intensity lighting systems deployed at construction or emergency sites.

What is the lying down process of COW?

Lying Down Process of COW (Telescopic Tower)‌.The lying down process — more accurately termed stowing to horizontal position — involves rotating the fully retracted or partially extended tower from vertical to horizontal orientation around a pivot point at its base. This is achieved through a hydraulic hinge mechanism that lowers the mast slowly and controllably, often with counterweights to balance torque. The process is critical for transportation, storm preparedness, or storage. Safety interlocks prevent movement unless all sections are fully retracted and locking pins are disengaged. Mobile lighting towers and radar masts commonly employ this feature to reduce wind load and enable trailer transport.

What is the retracting state of COW?

Retracting State of COW (Telescopic Tower)‌.The retracting state is the axial contraction of individual tower sections back into one another, reducing overall height while maintaining vertical alignment. Unlike the lying down process, retraction occurs with the tower still upright. Each section is pulled inward by winches or hydraulic cylinders, guided by telescoping sleeves and secured by mechanical locks at each stage. The sequence is reverse of extension: outermost section retracts first, followed by inner layers. This phase is typically performed before stowing to minimize structural stress and ensure compactness. Retraction is often automated and monitored via position encoders to prevent jamming or misalignment.

Certifications

Gular customers

galvanized steel telescopic tower,

truck mounted communication antenna,

heavy duty telescopic tower

Contact Details

Jiayao Co., Ltd.

Contact Person: Eric.Jia

Tel: +86-13903181586
