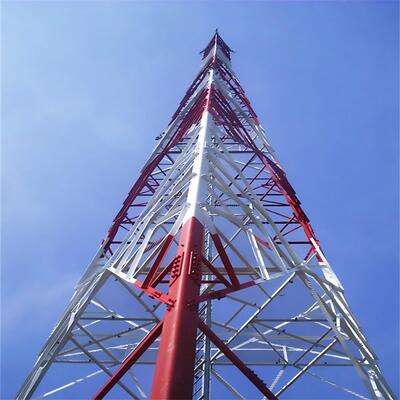

Designed For 200 Kmh Wind Speed Three Legged Steel Tower Engineered To Withstand Extreme Weather Providing Durability Over 20 Years

JIAYAO | Your Reliable Global Communication Tower Partner

As a professional manufacturer focused on steel communication towers, JIAYAO brings over 20 years of manufacturing and exporting experience to every telecom infrastructure project. We deliver more than 1,000 finished towers to global markets annually, with an annual export volume reaching 10 million US dollars. Up to now, our tower solutions have been successfully deployed in 55 countries across Southeast Asia, the Middle East, Latin America, Africa and beyond.
We provide full OEM/ODM customization services to meet all your specific project demands. From standard 5G cellular lattice towers, monopoles and guyed masts, to application-specific towers built for mining sites, wind farms and extreme weather scenarios, we can tailor the optimal solution for your requirements.
Backed by strict quality control, mature global delivery capabilities and full technical support, we have been a long-trusted partner for telecom operators, EPC contractors and project integrators worldwide. Scroll down to view detailed product specifications, project cases and custom solutions.

Product Description:

The Three Legged Steel Utility Tower is a robust and reliable solution designed to meet the demanding requirements of modern utility infrastructure. Engineered with precision and adhering to internationally recognized standards, this Tri Legged Angular Tower stands out as an optimal choice for various applications, including power transmission, telecommunications, and other utility services. Its three-legged angular design ensures superior stability and strength, making it an excellent option for installations in diverse environmental conditions.

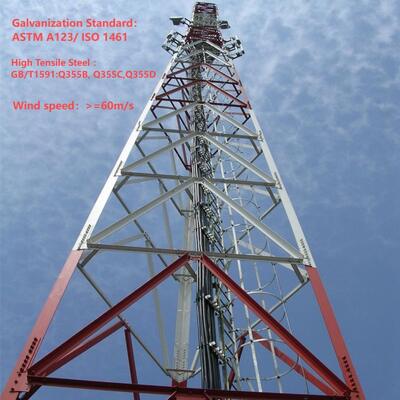

One of the primary advantages of the Three Legged Steel Utility Tower is its low maintenance requirement. Constructed with high-quality materials and coated with a durable galvanizing layer that meets ASTM A123 and ISO 1461 standards, the tower is highly resistant to corrosion and environmental wear. This galvanizing standard ensures that the tower's surface remains protected against rust and other corrosive elements, significantly extending its service life and reducing the need for frequent maintenance interventions.

The Tri Legged Angular Tower is designed to withstand extreme weather conditions, including high wind speeds of up to 200 km/h. This exceptional wind resistance capability is a crucial feature for utility towers located in regions prone to strong winds and storms. The structural integrity of the tower remains uncompromised, ensuring continuous and reliable performance under adverse weather conditions. The angular design further enhances the tower’s ability to distribute wind loads evenly, minimizing stress on individual components and improving overall durability.

Compliance with international standards is a critical aspect of the Three Legged Steel Utility Tower's design. The tower adheres to IEC, ANSI, and GB standards, ensuring that it meets rigorous quality and safety benchmarks recognized worldwide. This multi-standard compliance guarantees compatibility with various regional regulations and facilitates global deployment. Whether the tower is installed in North America, Asia, or other parts of the world, users can trust that it meets the highest industry specifications for performance and safety.

The connection type used in the Tri Legged Angular Tower is bolted, which offers significant advantages in terms of assembly, disassembly, and maintenance. Bolted connections provide a secure and stable joint while allowing for easier installation compared to welded structures. This feature enables faster construction times and simplifies any future modifications or repairs. The bolted design also enhances the tower’s adaptability, making it suitable for a wide range of site conditions and project requirements.

In addition to its structural and functional benefits, the Three Legged Steel Utility Tower is engineered for versatility. Its modular design allows for customization based on specific height, load, and environmental needs. This flexibility makes it a preferred choice for utility companies and contractors looking for a reliable yet adaptable tower solution. The tri-legged configuration not only improves load distribution but also optimizes the use of materials, resulting in a cost-effective and efficient design.

Overall, the Three Legged Steel Utility Tower combines strength, durability, and compliance with ease of installation and low maintenance requirements. Its adherence to IEC, ANSI, and GB standards, bolted connection type, and galvanizing protection per ASTM A123/ISO 1461 make it a superior choice for utility infrastructure projects. Designed to resist wind speeds up to 200 km/h, the Tri Legged Angular Tower ensures operational reliability even in challenging environments.

Whether you are upgrading existing transmission lines or establishing new utility networks, the Three Legged Steel Utility Tower provides a dependable and long-lasting foundation. Its engineering excellence and quality assurance make it an investment that delivers safety, performance, and peace of mind for years to come.

Features:

• Product Name: 3 Legged Angular Steel Tower
• Structure Type: Three Legged Angle Steel Structure
• Also Known As: Three Legged Steel Tower, Three Legged Steel Angle Tower
• Galvanization: Hot-dip galvanized for enhanced corrosion resistance
• Galvanizing Standard: Complies with ASTM A123 and ISO 1461 standards
• Wind Resistance: Designed to withstand wind speeds up to 200 Km/h
• Standard Compliance: Manufactured according to IEC, ANSI, and GB standards
• Connection Type: Bolted connections for easy assembly and maintenance

Technical Parameters:

Applications:

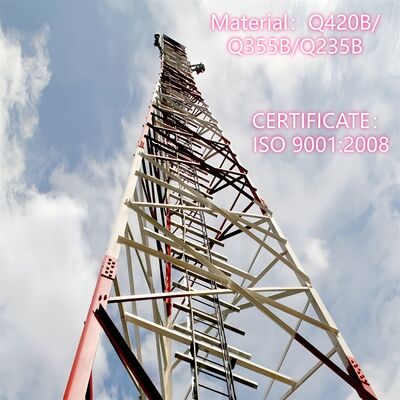

The JIAYAO 3 Legs Angle Tower, also known as the Tri Legged Angular Tower, is a versatile and robust solution widely used across various industrial and commercial applications. Manufactured in China and certified with ISO9001:2008, SGS, and COC, this Three Legged Steel Tower guarantees high-quality standards, durability, and reliability. Its hot-dip galvanization ensures long-lasting protection against corrosion, making it ideal for outdoor installations with a lifespan exceeding 20 years under normal conditions.

This Tripod Angular Steel Tower is highly customizable, with heights typically ranging from 15 meters to 100 meters, allowing it to meet diverse project requirements. The bolted connection type facilitates easy assembly and disassembly, making it suitable for temporary or permanent structures. Designed to withstand wind speeds up to 200 km/h, this angular steel tower is perfect for locations exposed to harsh weather conditions, ensuring structural integrity and safety.

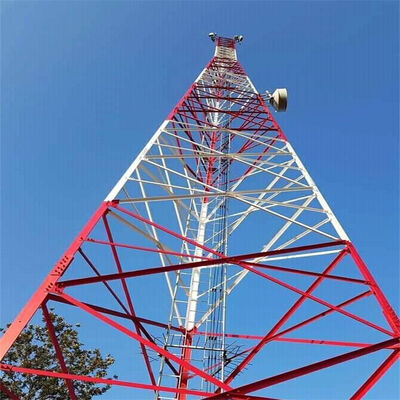

Common application occasions for the Tri Legged Angular Tower include telecommunications, where it supports antennas and signal equipment in both urban and rural areas. It is also widely used in power transmission as a stable support structure for overhead power lines, contributing to efficient and reliable electricity distribution. Additionally, it serves as a framework for lighting towers in stadiums, highways, and construction sites, providing elevated platforms for powerful lighting fixtures.

The Three Legged Steel Tower is frequently employed in meteorological stations to mount weather monitoring instruments at significant heights, enhancing data accuracy. It is also used for surveillance and security cameras in large industrial complexes, airports, and border areas, taking advantage of its sturdy and elevated design. Furthermore, the tripod design’s stability makes it ideal for wind turbine towers in renewable energy projects, supporting small to medium-sized turbines efficiently.

JIAYAO offers flexible packaging options, including 20GP or 40HQ containers, ensuring safe and cost-effective shipping. With a minimum order quantity of 4 tons and competitive pricing starting from US$1300 per ton (dropping to US$1000 per ton for orders over 100 tons), this product is accessible for a wide range of businesses. The delivery time is typically 30 days after receiving a 30% deposit, with payment terms accommodating L/C and T/T methods. With a supply ability of 60,000 tons per year, JIAYAO’s 3 Legs Angle Tower is a dependable choice for projects requiring durable, customizable, and high-performance angular steel towers.

Customization:

JIAYAO presents the 3 Legged Angular Steel Tower, a high-quality Triangular Leg Steel Tower designed for durability and strength. Our Three Legged Steel Utility Tower is manufactured in China and certified with ISO9001:2008 SGS COC, ensuring top-notch quality standards.

The 3 Legged Angular Steel Tower is customizable in height, typically ranging from 15m to 100m, and is engineered to withstand wind speeds up to 200 Km/h. This Three Legged Steel Tower is designed to be installed on a concrete foundation, providing excellent stability and longevity with a durability of over 20 years under normal conditions.

We offer competitive pricing with a minimum order quantity of 4 tons. For orders of 4 tons or more, the price starts at US$1300 per ton, and for bulk orders of 100 tons or more, the price reduces to US$1000 per ton. Packaging is available in 20GP or 40HQ containers.

Delivery time is approximately 30 days after receiving a 30% deposit. Payment terms include L/C and T/T to facilitate smooth transactions. With a supply ability of 60,000 tons per year, JIAYAO is your reliable partner for Three Legged Steel Tower solutions.

Support and Services:

Product Technical Support and Services for the 3 Legged Angular Steel Tower

Our technical support team is dedicated to providing comprehensive assistance for the 3 Legged Angular Steel Tower to ensure optimal performance and safety. We offer expert guidance on installation, maintenance, and troubleshooting to help you maximize the lifespan and functionality of your steel tower.

Services include detailed engineering consultations, structural analysis, and customization options to meet specific project requirements. Our support also covers compliance with industry standards and local regulations, ensuring that your tower installation is both reliable and certified.

In addition to technical advice, we provide access to a range of resources including detailed product manuals, installation guides, and preventive maintenance schedules. Our team is available to assist with any technical inquiries or challenges you may encounter during the lifecycle of the product.

We are committed to delivering prompt and effective support to minimize downtime and enhance your operational efficiency. Whether you require onsite assistance or remote support, our experts are ready to help you achieve success with your 3 Legged Angular Steel Tower.

Packing and Shipping:

Product Packaging:

The 3 Legged Angular Steel Tower is securely packaged using heavy-duty materials to ensure protection during transit. Each tower is disassembled and wrapped in corrosion-resistant plastic films, then cushioned with foam padding to prevent damage. The components are neatly organized in a reinforced wooden crate or sturdy steel frame container, labeled clearly for easy identification and handling.

Shipping:

Shipping of the 3 Legged Angular Steel Tower is conducted via sea freight, air freight, or land transport depending on destination and customer requirements. The packaging is designed to withstand long-distance shipping and harsh environmental conditions. All shipments include detailed documentation such as packing lists, certificates of origin, and quality assurance certificates to facilitate smooth customs clearance. Delivery schedules are coordinated to ensure timely arrival at the installation site.

FAQ:

Q1: What is the brand and model number of the 3 Legged Angular Steel Tower?

A1: The brand name is JIAYAO and the model number is 3 Legs Angle Tower.

Q2: Where is the 3 Legged Angular Steel Tower manufactured?

A2: It is manufactured in China.

Q3: What certifications does the 3 Legged Angular Steel Tower have?

A3: The product is certified with ISO9001:2008, SGS, and COC.

Q4: What is the minimum order quantity and pricing for the 3 Legged Angular Steel Tower?

A4: The minimum order quantity is 4 tons. The price is US$1300 per ton for orders of 4 tons or more, and US$1000 per ton for orders of 100 tons or more.

Q5: What are the delivery time and payment terms for this product?

A5: The delivery time is 30 days after receiving a 30% deposit. Payment terms accepted are L/C and T/T.

Q6: What are the packaging options and supply capacity for the 3 Legged Angular Steel Tower?

A6: Packaging is available in 20GP or 40HQ containers. The supply ability is 60,000 tons per year.
