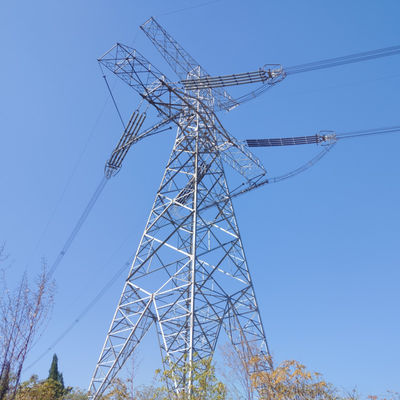

High Voltage Power Transmission Line Tower 10KV 33KV 66KV 110KV

Large Image : High Voltage Power Transmission Line Tower 10KV 33KV 66KV 110KV

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	GB / ANSI / TIA-222-G
Model Number:	3 Legs Angle Tower

Payment & Shipping Terms:

Minimum Order Quantity:	4 Tons
Price:	>=4 Tons,US$1600;>=100 Tons,US$1000
Packaging Details:	Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time:	15-25Days
Payment Terms:	L/C, T/T
Supply Ability:	500 -1000tons per month

Contact Now

High Voltage Power Transmission Line Tower 10KV 33KV 66KV 110KV

Description

Standard:	ANSI/TIA-222-G-2005	Material:	Angle Steel Q235B Q345B Q420
Certification:	ISO9001:2008 SGS COC	Welding:	AWS D 1.1
Product Name:	Power Transmission Line Tower	Height:	5-200M,be Customizabled
Wind Speed:	30-180 Km/h	Lifetime:	More Than 20 Years
Application:	Telecommunication, Broadcasting, And Power Transmission	Rated Voltage:	10KV 33KV 66KV 110KV 132KV 220KV 380KV 400KV 500KV 750KV 1000KV
Highlight:	High Voltage power transmission line tower , 33kv power transmission line tower , 66kv 110 kv tower

High Voltage Power Transmission Line Tower 10KV 33KV 66KV 110KV 132KV 220KV 380KV 400KV 500KV 750KV 1000KV

JIAYAO CO., LTD

1.Product Description

Height	From 10M-100M or according to client’s requirement
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q235B/A36,Yeild Strength≥235MPa
	Q345B/A572,Yeild Strength≥345MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	10kV to 500kV
Tolerance of the dimension	According to client’s requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ISO9001:2008
Length of per section	Within 13M once forming
Welding Standard	AWS(American Welding Society)D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client’s requirement
Life Period	More than 30 years, it is according to installing environment

Installation, construction, testing

Style display

Accept customer customization requirements

Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.

Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.

'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.

Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.
