Product Details:
|
| Standard: | ANSI/TIA-222-G-2005 | Material: | Angle Steel Q235B Q345B Q420 |
|---|---|---|---|
| Certification: | ISO9001:2008 SGS COC | Welding: | AWS D 1.1 |
| Product Name: | Power Transmission Line Tower | Height: | 5-200M,be Customizabled |
| Wind Speed: | 30-180 Km/h | Lifetime: | More Than 20 Years |
| Application: | Telecommunication, Broadcasting, And Power Transmission | Rated Voltage: | 10KV 33KV 66KV 110KV 132KV 220KV 380KV 400KV 500KV 750KV 1000KV |
| Highlight: | electric transmission tower galvanized,pylon power electric transmission tower,35kv 132kv transmission tower |
||
| Height | From 10M-100M or according to client’s requirement |
| Suit for | Electric Power Transmission and Distribution |
| Shape | Polygonal or Conical |
| Material | Normally Q235B/A36,Yeild Strength≥235MPa |
| Q345B/A572,Yeild Strength≥345MPa | |
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | |
| Power Capacity | 10kV to 500kV |
| Tolerance of the dimension | According to client’s requirement |
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement |
| Joint of Poles | Slip joint, flanged connected |
| Standard | ISO9001:2008 |
| Length of per section | Within 13M once forming |
| Welding Standard | AWS(American Welding Society)D 1.1 |
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages |
| Packages | Packing with plastic paper or according to client’s requirement |
| Life Period | More than 30 years, it is according to installing environment |
Installation, construction, testing
Style display
Accept customer customization requirements
Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.
Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.
'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.

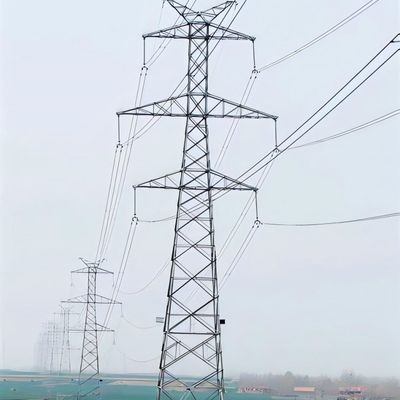

Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.
