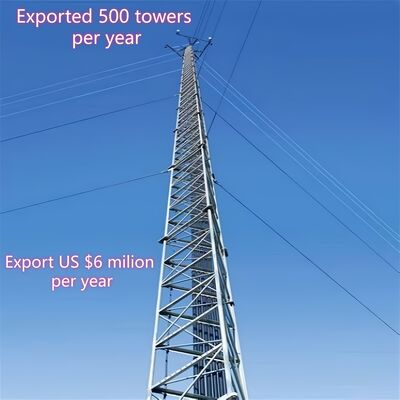

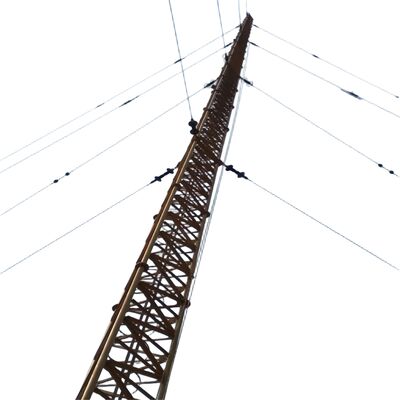

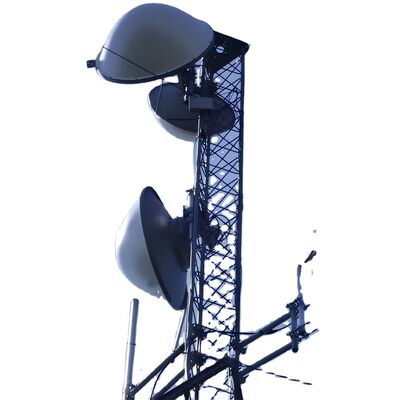

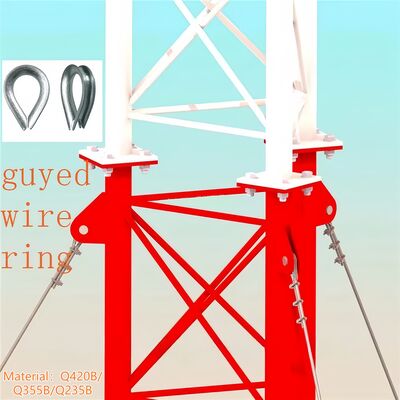

10 20 30 40 50 65m 3 Leg Guyed Wire Weather Resistant Galvanized Steel 4G 5G Microwave Wifi Telecom Transmission Tower

Large Image : 10 20 30 40 50 65m 3 Leg Guyed Wire Weather Resistant Galvanized Steel 4G 5G Microwave Wifi Telecom Transmission Tower

Product Details:

Place of Origin:	China
Brand Name:	Jiayao
Certification:	ISO9001:2008 COC
Model Number:	Guyed Wire Tower

Payment & Shipping Terms:

Minimum Order Quantity:	4 Tons
Price:	US$1600,1-100Tons;US$1000,>=100 Tons
Packaging Details:	Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Delivery Time:	15-20Days
Payment Terms:	L/C, T/T
Supply Ability:	500-1000 tons per month

Contact Now Chat Now

10 20 30 40 50 65m 3 Leg Guyed Wire Weather Resistant Galvanized Steel 4G 5G Microwave Wifi Telecom Transmission Tower

Description

Name:	Hot Dip Galvanized Tubular Steel 5G Radio Antenna Telecommunication Mast Communication Telecom Guyed Tower	Certification:	ISO9001:2008 COC
Standard:	ANSI/TIA-222-G-2005	Material:	ASTM A36 A572 Gr50
Nuts & Bolts:	GrGrade 8.8/6.8	Height:	5-100M
Wind Speed:	>60M/S	Lifetime:	More Than 20 Years
Surface Treatment:	Hot-dip Galvanized	Welding:	AWS D 1.1
Color:	Customized	Application:	Communication Tower
Highlight:	galvanized steel guyed wire tower , weather resistant telecom transmission tower , 4G 5G microwave wifi tower

JIAYAO CO., LTD.

1.Specifications

Design
1. Design Code	EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2

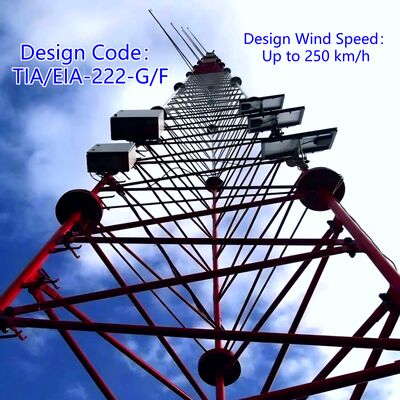

3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

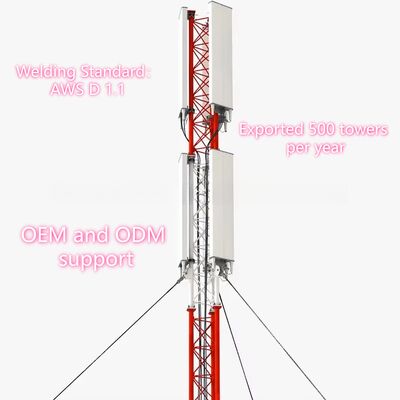

13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
